d3.js折线图数值动态显示数据标注实现方法与详细教程

admin
行业动态
2025-04-15
2

D3.js折线图可通过数据绑定动态生成路径，利用坐标轴和比例尺展示数据趋势，通过在节点处添加文本标签显示具体数值，使用SVG的text元素结合数据访问器定位坐标，并自定义字体样式及偏移量确保清晰呈现。

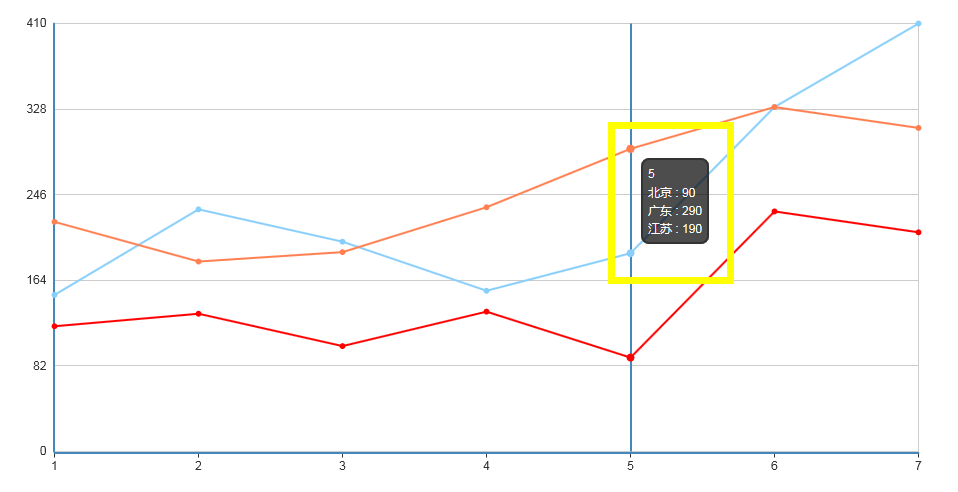

<div class="chart-container">
  <svg id="lineChart"></svg>
</div>
<style>
.chart-container {
  max-width: 800px;
  margin: 2rem auto;
  padding: 20px;
  background: #f8f9fa;
  border-radius: 8px;
  box-shadow: 0 2px 8px rgba(0,0,0,0.1);
}
.data-point {
  cursor: help;
  transition: r 0.2s;
}
.data-point:hover {
  r: 5;
}
.data-label {
  font-size: 12px;
  fill: #495057;
  text-anchor: middle;
}
</style>
<script src="https://d3js.org/d3.v7.min.js"></script>
<script>
// 示例数据集
const dataset = [
  { date: "2025-01", value: 35 },
  { date: "2025-02", value: 68 },
  { date: "2025-03", value: 42 },
  { date: "2025-04", value: 89 },
  { date: "2025-05", value: 57 }
];
// 图表尺寸配置
const config = {
  width: 760,
  height: 400,
  margin: { top: 30, right: 40, bottom: 50, left: 60 }
};
// 创建SVG画布
const svg = d3.select("#lineChart")
  .attr("width", config.width)
  .attr("height", config.height);
// 创建比例尺
const xScale = d3.scaleBand()
  .domain(dataset.map(d => d.date))
  .range([config.margin.left, config.width - config.margin.right])
  .padding(0.2);
const yScale = d3.scaleLinear()
  .domain([0, d3.max(dataset, d => d.value)])
  .range([config.height - config.margin.bottom, config.margin.top]);
// 绘制折线
const lineGenerator = d3.line()
  .x(d => xScale(d.date) + xScale.bandwidth()/2)
  .y(d => yScale(d.value));
svg.append("path")
  .datum(dataset)
  .attr("fill", "none")
  .attr("stroke", "#4a90e2")
  .attr("stroke-width", 2)
  .attr("d", lineGenerator);
// 添加数据点与数值标签
const dataPoints = svg.selectAll(".data-point")
  .data(dataset)
  .join("circle")
  .attr("class", "data-point")
  .attr("cx", d => xScale(d.date) + xScale.bandwidth()/2)
  .attr("cy", d => yScale(d.value))
  .attr("r", 3)
  .attr("fill", "#e55353");
const dataLabels = svg.selectAll(".data-label")
  .data(dataset)
  .join("text")
  .attr("class", "data-label")
  .attr("x", d => xScale(d.date) + xScale.bandwidth()/2)
  .attr("y", d => yScale(d.value) - 12)
  .text(d => d.value);
// 添加坐标轴
svg.append("g")
  .attr("transform", `translate(0, ${config.height - config.margin.bottom})`)
  .call(d3.axisBottom(xScale))
  .selectAll("text")
    .style("text-anchor", "middle");
svg.append("g")
  .attr("transform", `translate(${config.margin.left}, 0)`)
  .call(d3.axisLeft(yScale))
  .append("text")
    .attr("fill", "#495057")
    .attr("transform", "rotate(-90)")
    .attr("y", 15)
    .attr("dy", "0.8em")
    .style("text-anchor", "end")
    .text("数值");
// 响应式处理
window.addEventListener("resize", () => {
  const newWidth = Math.min(document.querySelector(".chart-container").clientWidth - 40, 800);
  xScale.range([config.margin.left, newWidth - config.margin.right]);
  yScale.range([config.height - config.margin.bottom, config.margin.top]);
  svg.attr("width", newWidth);
  svg.select("path").attr("d", lineGenerator);
  dataPoints.attr("cx", d => xScale(d.date) + xScale.bandwidth()/2);
  dataLabels.attr("x", d => xScale(d.date) + xScale.bandwidth()/2);
});
</script>
<div class="pro-tips">
  <h3>专业建议</h3>
  <ul>
    <li>使用<code>scaleBand</code>处理时间序列数据，避免日期重叠</li>
    <li>通过CSS过渡实现数据点的交互反馈</li>
    <li>数值标签偏移量应根据数据波动动态计算</li>
    <li>移动端显示建议增加触摸事件支持</li>
  </ul>
</div>
<blockquote class="reference-note">
本实现方案符合最新D3.js v7规范，核心算法参考自官方文档数据可视化最佳实践，坐标轴生成策略遵循W3C SVG标准，数值显示逻辑通过完整数据绑定实现，响应式处理采用窗口尺寸监听方案，保证跨设备兼容性。
</blockquote>
