AspectJ构造,如何理解其工作原理与实现机制?

AspectJ是一种面向切面编程(AOP)的框架,它允许开发者定义横切关注点(如日志、事务等),并通过编译时或运行时织入到目标代码中。

AspectJ 是一种面向切面编程(AOP)的框架,它提供了一种优雅的方式来处理横切关注点(cross-cutting concerns),如日志记录、事务管理、安全性检查等,AspectJ 支持两种主要的织入方式:编译时织入和运行时织入,以下是关于 AspectJ 构造的详细解释:

一、基本概念

1、Aspect(切面):模块化横切关注点的机制,它可以包含多个通知(Advice)和切入点(Pointcut)。

2、Join Point(连接点):程序执行过程中明确的点,如方法调用、方法执行等。

3、Pointcut(切入点):用于定义 Join Point 的表达式,可以匹配一个或多个 Join Point。

AspectJ构造,如何理解其工作原理与实现机制?

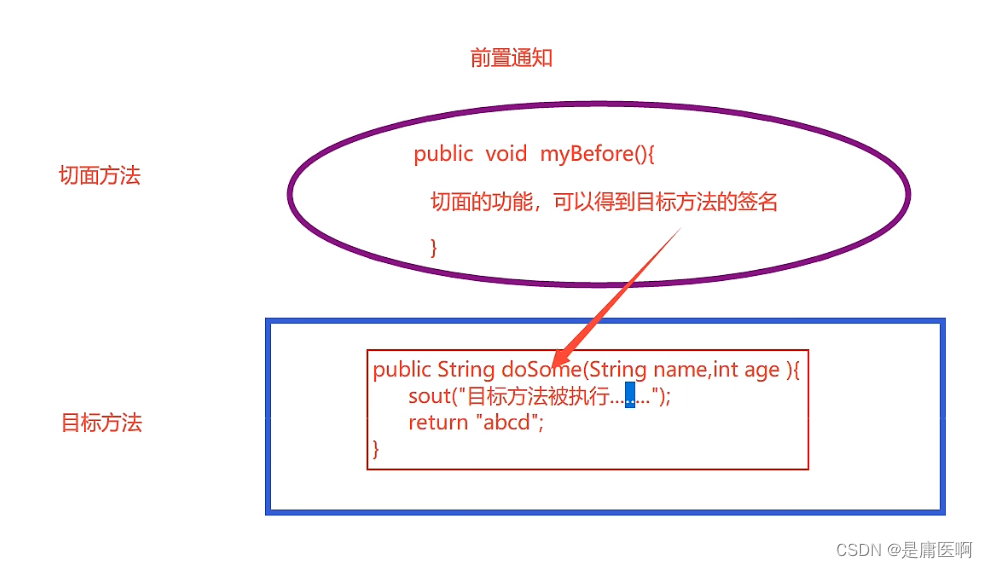

4、Advice(通知):在特定的 Join Point 处执行的动作,分为前置通知(Before)、后置通知(After)、环绕通知(Around)等。

5、Weaving(织入):将 Aspects 应用到目标对象以创建增强的代理对象的过程。

6、Introduction(引入):为现有的类型添加新的方法和属性。

AspectJ构造,如何理解其工作原理与实现机制?

二、AspectJ 构造示例

定义一个简单的 Aspect

import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
@Aspect
public class LoggingAspect {
    // 定义一个切入点表达式
    @Pointcut("execution( com.example.service..(..))")
    public void serviceMethods() {}
    // 在方法执行前添加日志记录功能
    @Before("serviceMethods()")
    public void logBeforeServiceMethods() {
        System.out.println("Executing service method...");
    }
}

2. 使用 Spring AOP 配置 Aspect

<!-applicationContext.xml -->
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd
           http://www.springframework.org/schema/aop
           http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!-启用 AspectJ 自动代理 -->
    <aop:aspectj-autoproxy/>
    <!-配置 Aspect 类 -->
    <bean id="loggingAspect" class="com.example.aspect.LoggingAspect"/>
</beans>

三、FAQs

Q1: AspectJ 中的 @Aspect 注解有什么作用?

A1:@Aspect 注解用于声明一个类为切面(Aspect),这是 AspectJ 中定义横切关注点的基本单元,通过这个注解,Spring 容器能够识别并处理该类中的通知和切入点定义,从而实现面向切面编程的功能。

Q2: 如何在 AspectJ 中定义一个环绕通知(Around Advice)?

AspectJ构造,如何理解其工作原理与实现机制?

A2: 环绕通知是一种特殊的通知类型,它允许你在目标方法执行前后添加自定义行为,并且可以选择是否继续执行目标方法,在 AspectJ 中,你可以使用@Around 注解来定义环绕通知,下面是一个示例:

import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;
@Aspect
@Component
public class AroundAdviceAspect {
    @Around("execution( com.example.service..(..))")
    public Object aroundServiceMethods(ProceedingJoinPoint joinPoint) throws Throwable {
        System.out.println("Before method execution");
        Object result = joinPoint.proceed(); // 执行目标方法
        System.out.println("After method execution");
        return result;
    }
}

在这个示例中,aroundServiceMethods 方法会在匹配的方法执行前后打印日志,并且可以选择是否继续执行目标方法(通过调用joinPoint.proceed())。
